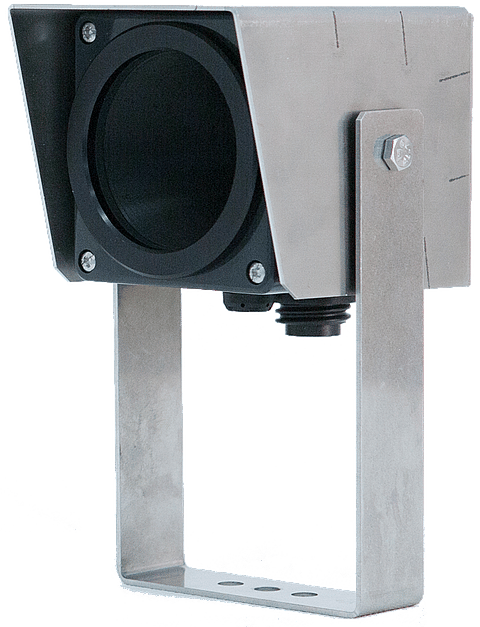

TDC2-PIRUS

Detects both moving standing vehicles and objects

Detects vehicles passing through or standing in its field of view. Leverages two distinct technologies for moving and true-presence detection. Reliable height/distance discrimination to filter unwanted objects. Uses Passive Infrared (PIR) and Ultrasonic (US) technology. Vehicle events (count) and distance (height) are provided via RS 485 databus, additional true-presence is available via relay output. Detection range is 0.5 - 10m (1.7 - 33 ft.)
